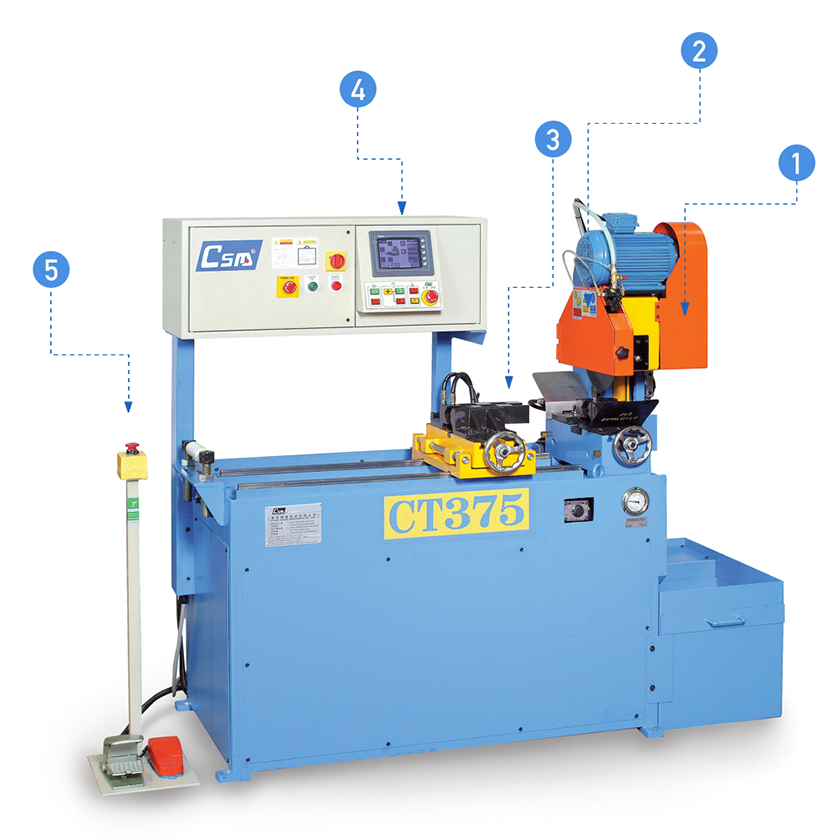

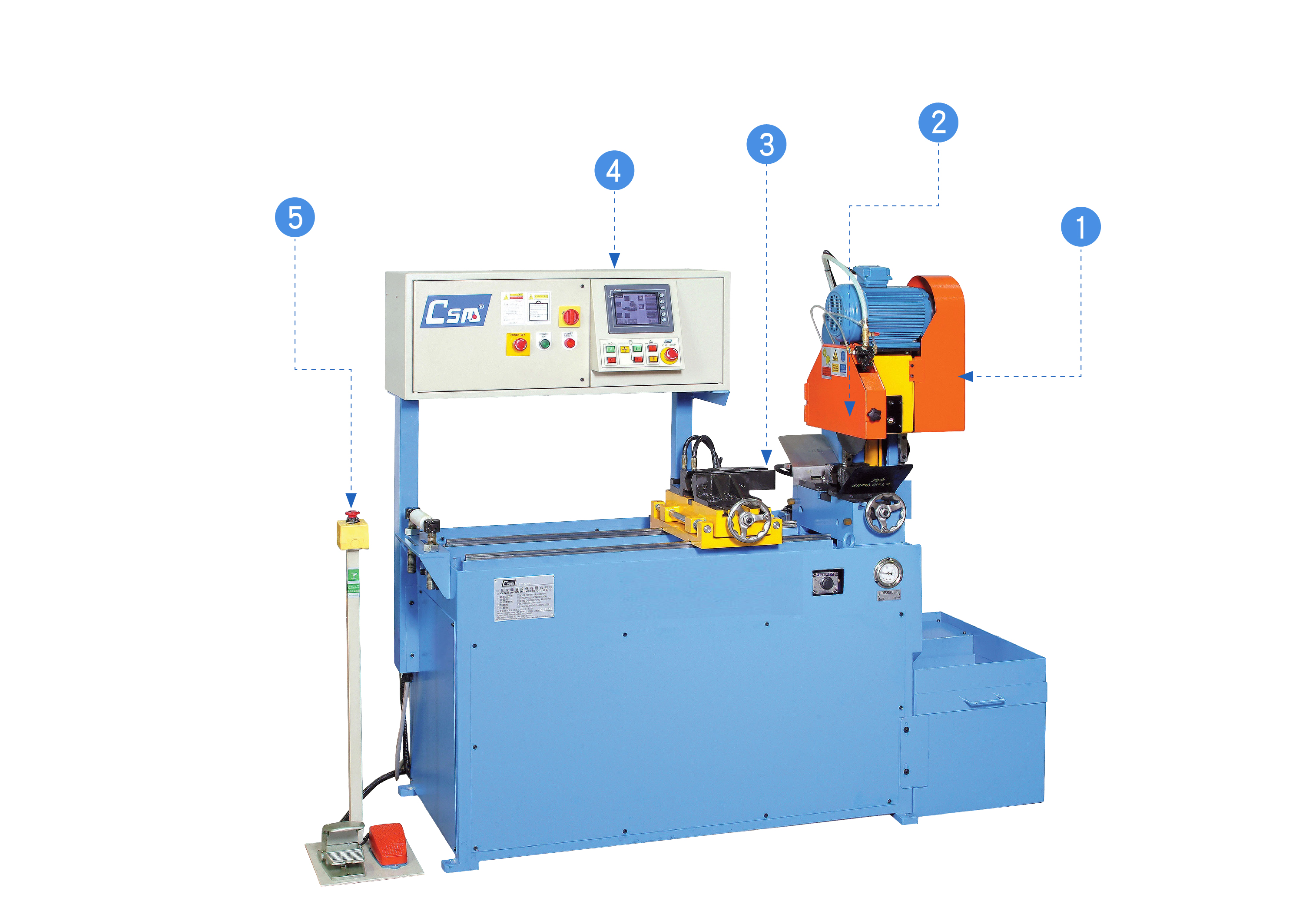

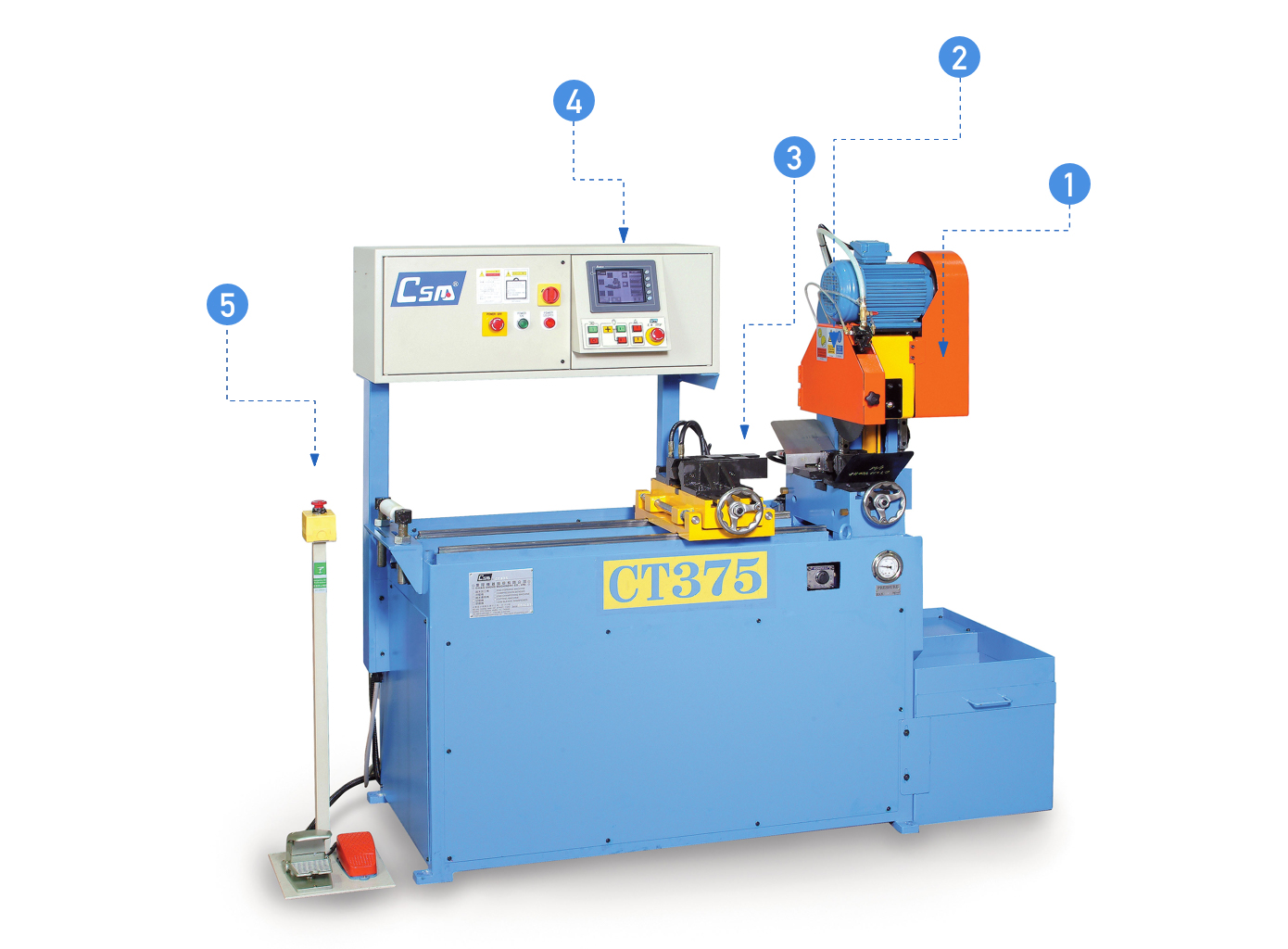

1. down feed by hydraulic
  2. cutting: by aid of planetary transmission gears, assure energy economic. Circular saw blade= OD 250~325mm
  3. carriage: clamping by hydraulic, feeding by servo motor
  4. PLC controller with touch screen display
  5. standing pedestal serves emergency stop and remote control

specification

unit

CT325 L-type

CT325 M-type

CT325 H-type

mild Steel

(S=40kgf/mm²)

mm

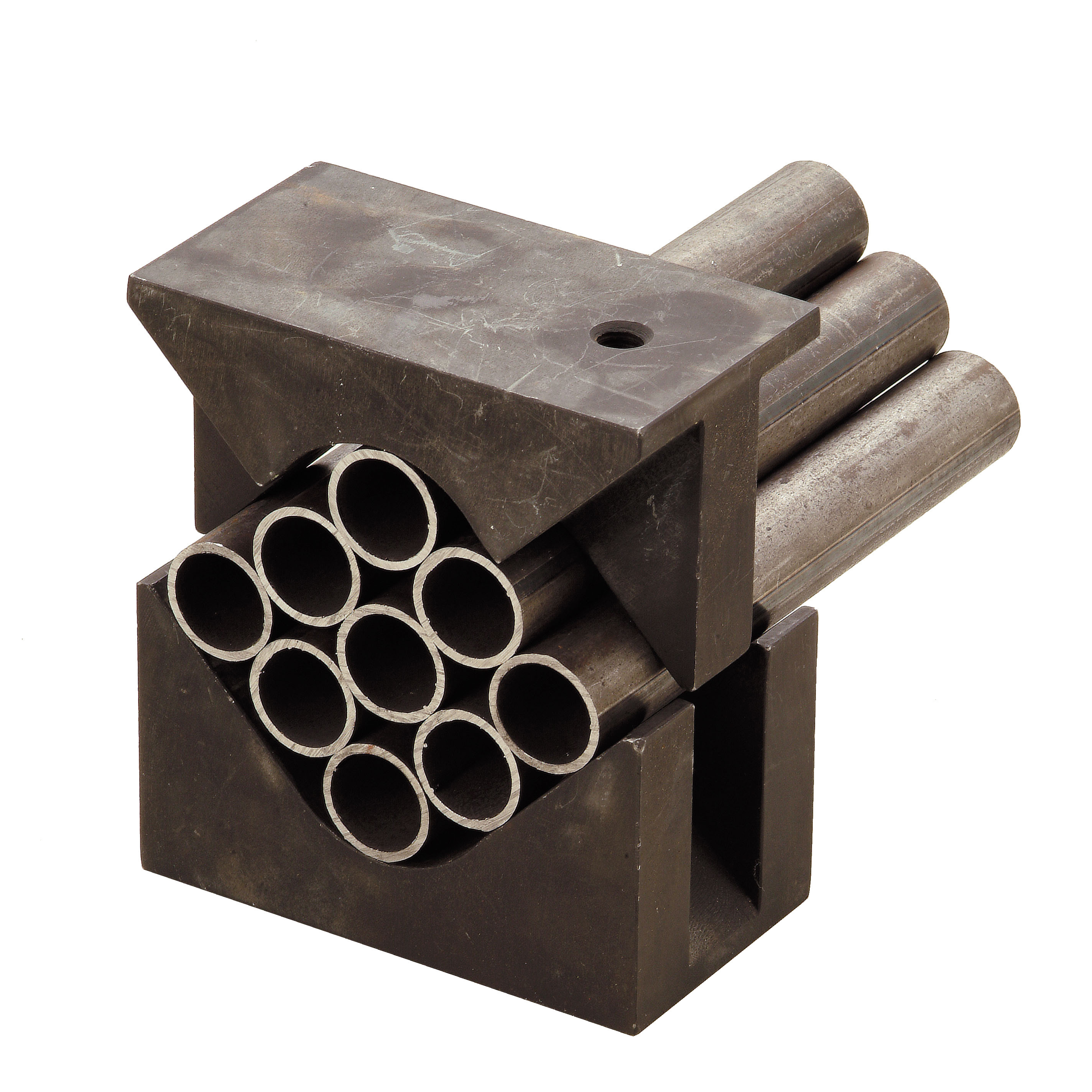

standard vises

>OD44~101.6

customized vises

>OD12~63.5

standard vises

>OD44~101.6

customized vises

>OD12~63.5

standard vises

>OD44~101.6

customized vises

>OD12~63.5

total Power

HP

3.8

3.8

3.8

spindle rotation rate

rpm

22~62

47~135

80~220

saw blade

mm

OD 250~325

OD 250~325

OD 250~325

feeding speed

mm/s

1000

1000

1000

feeding accuracy

mm

±0.1

±0.1

±0.1

working height

mm

950

950

950

length

mm

1700

1700

1700

width

mm

760

760

760

height

mm

1600

1600

1600

weight

kgw

800

800

800
